FJ Cruiser
These much anticipated systems are starting production. Right now two systems will be offered, the System Alpha and the Alpha-X, with two-drawer Bravo versions of each to follow shortly. Both Alpha versions will include our upgraded cutting board lift hinge system. Scroll down to view both systems.
SYSTEM ALPHA
This is our flagship system. It fills the cargo area with useful storage while allowing the second row seats to remain usable. We’ve put the fridge on the passenger side due to the FJ’s hatch location. Requires no drilling or permanent modifications to the vehicle.
Specs:
Fridge area internal dimensions - 28.5” long x 21.5” high x 16.5” wide. (There are bolts that take up about 3/8” width on each side near the bottom, but this usually isn’t an issue since you need air space for the fridge. Also, due to the small space in the FJ the cargo barrier behind the fridge and the fridge area face have been removed to allow the largest fridge possible. The limiting factor is the distance from the seat back to the rear hatch)
Large drawer internal dimensions - 26.5” long x 9.8” high x 17” wide
Shallow drawer internal dimensions - 26.5” long (21” between the lift hinges) x 3.75” high x 15.125” wide
May be shown with optional equipment.
All system prices include either FREE installation in Rancho Cordova, CA or business to business freight shipping within the lower 48.
We are constantly striving to improve our products. Therefore, some images may depict older versions.
System Alpha - Complete System
Large double locking main drawer
Integrated fridge slide
Shallow drawer
Large phenolic work surface
Wing Kit with soft close hinges
Cargo Barrier
Divider
Fridge Barrier
Shelf
UV stable color-matched LINE-X finish
Why Trekboxx? Click here to find out

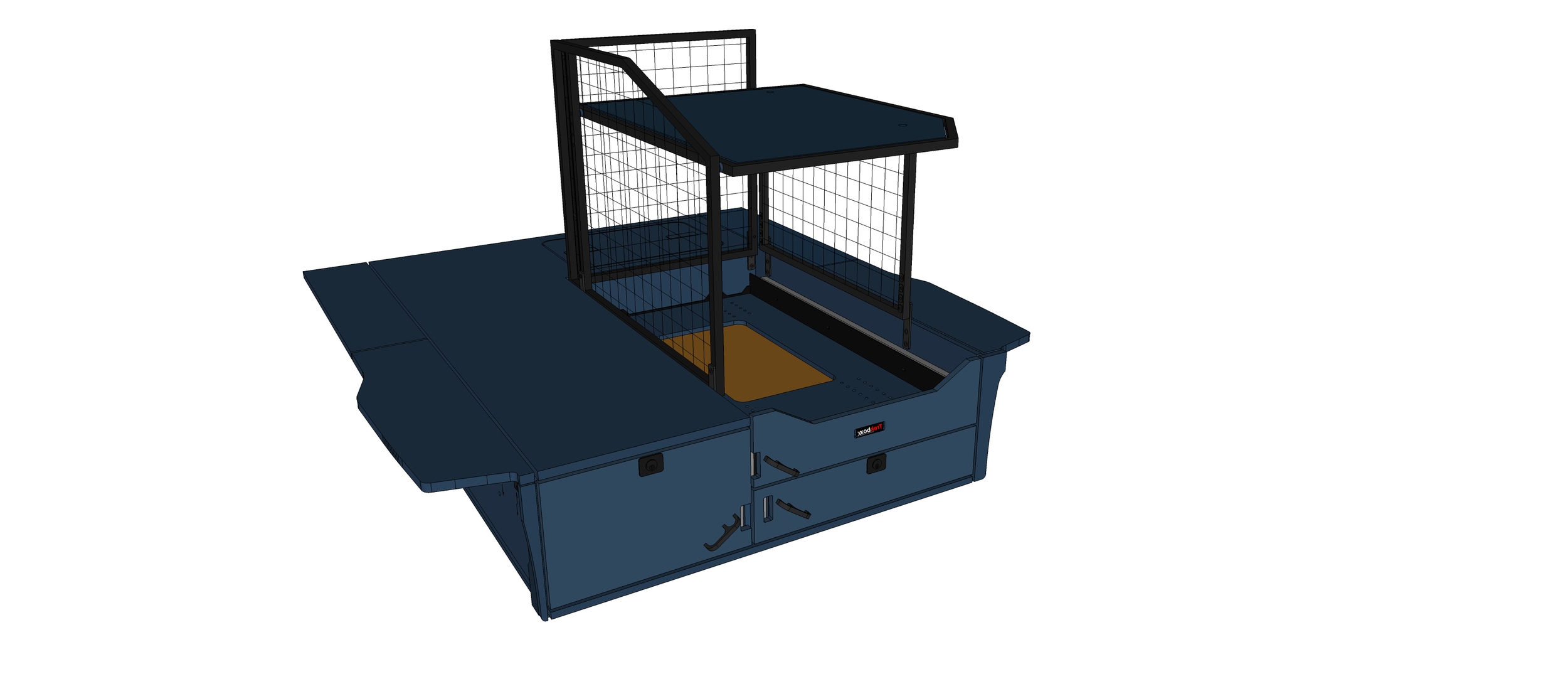

SYSTEM ALPHA-X
This is the hardcore expedition version of the Alpha. It’s a full second row delete offering huge amounts of storage and a fridge slide that will fit the largest fridges. There is additional storage accessible via a locking hatch behind the fridge area. You will be the envy of the Land Cruiser guys. An extension will be available to create a useable sleeping platform.
Requires temporary second row seats removal.
Specs:
Fridge area internal dimensions - 37.25” long x 21.5” high x 20.875” wide. (There are bolts that take up about 3/8” width on each side near the bottom, but this usually isn’t an issue since you need air space for the fridge.)
Large drawer internal dimensions - 53.5” long x 9.8” high x 13.125” wide
Shallow drawer internal dimensions - 37.5” long (29” between the lift hinges) x 3.75” high x 18.5” wide
Zulu 1 shown in color
System Alpha - X Complete System
Large double locking main drawer
Integrated huge fridge slide
Hatch behind fridge area for more storage
Shallow drawer
Large phenolic work surface
Wing Kit with soft close hinges
Cargo Barrier
Divider
Fridge Barrier
Shelf
UV stable color-matched LINE-X finish
Why Trekboxx? Click here to find out
